Marinoni Turismo Extreme

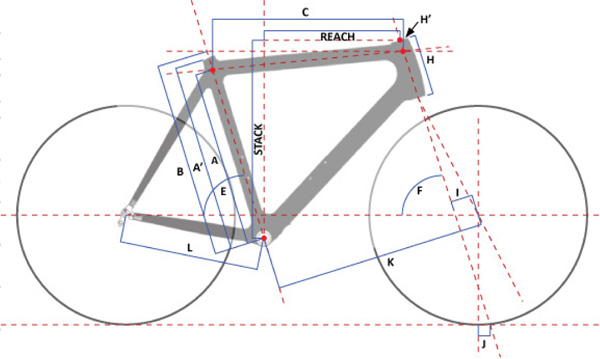

Geometry Chart

		XS	S	S-M	M	L	XL	XXL
A	Size (C-C)	400	430	460	490	520	550	580
A'	Size (C-T)	440	470	500	530	560	590	620
B	Effective Size	475	505	520	545	570	605	630
C	Top Tube Length (C-C)	530	535	550	560	575	585	600
E	Seat Tube Angle	75.0°	74.5°	74.0°	74.0°	74.0°	73.5°	73.0°
F	Head Tube Angle	71.2°	71.2°	71.3°	71.5°	71.7°	72.7°	72.8°
H	Head Tube Length	90	95	99	124	153	176	204
H	Head Tube Extention	20	20	20	20	20	20	20
I	Fork Rake	50	50	50	50	50	45	45
J	Fork Trail	63	63	62	61	60	59	58
K	B.B Center to FR. Hub Center	587	596	605	615	625	621	629
L	Chainstay Length	440	440	440	440	445	445	445
Stack		527	534	538	562	591	615	642
Reach		389	387	395	399	400	403	404

Terms:

• This warranty covers any manufacturing defect of any product manufactured by Cycles Marinoni. To have our warranty honoured, the registration card must be filled out and returned within 30 days of the date of purchase.
• The Campagnolo parts are covered by a 3-year limited warranty. Shimano parts are covered by a 2-year limited warranty. All the rest of the parts on the bike are covered by a 1-year limited warranty.
• In the event of a warranty claim, the decision to replace or repair defective parts will be at Marinoni's sole discretion.
• No cash refunds will be granted.
• The product user assumes the risks of bodily injury, financial losses, or any losses generated by the failure of any of our products.
• This warranty is void if the product is used in competition.
• This warranty is valid for the original owner only.
• The installation of accessories that are not intended for use on a particular bicycle model, could void the warranty.
• The warranty does not cover corrosion and oxidation due to use under extreme conditions.
• The warranty does not cover failure of any parts caused by an accident or improper use of the bicycle.

Custom Painting Available

For details, please contact one of our sales staff.
