Details
Completely revised for 2022, the brand-new Access WS EAZ's sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's also a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry is designed specifically around the female anatomy. It includes a lower top tube and tapered head tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range too, so every rider can find an Access WS EAZ that fits her perfectly.
There's that saying that power is nothing without control. Well, that's why we fitted the brand-new Access WS EAZ with strong, easy-to-use hydraulic disc brakes - so you can stop quickly and safely, whatever the conditions. Combined with the bump-swallowing comfort of a Suntour suspension fork and the wide range of Shimano's 2x8-speed gear system, it means this is a bike you can rely on to expand your riding horizons. Just pick your adventure, and go.

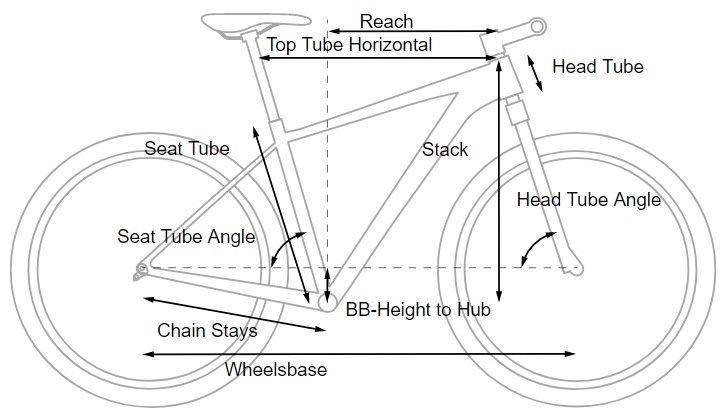

14" / 27.5 / X-Small | 16" / 27.5 / Small | 18" / 29 / Medium | 20" / 29 / Large | |
---|---|---|---|---|
A. Reach | 378mm | 391.6mm | 402.8mm | 419.8mm |
B. Stack | 599.7mm | 602.3mm | 632mm | 642mm |
C. Standover | 656mm | 680mm | 765mm | 793mm |
D. Effective Top Tube | 550mm | 570mm | 590mm | 610mm |
E. Head Tube Angle | 68.5° | 68.5° | 68.5° | 68.5° |
F. Head Tube Length | 113.2mm | 116mm | 116mm | 126.8mm |
G. Seat Tube Angle | 74° | 73.5° | 73.5° | 73.5° |
H. Seat Tube Length | 340mm | 370mm | 420mm | 470mm |
J. Bottom Bracket Drop | 51.5mm | 51.5mm | 65mm | 65mm |
M. Wheelbase | 1063mm | 1077.6mm | 1120.9mm | 1141.8mm |
O. Chainstay Length | 427mm | 427mm | 450mm | 450mm |
Wildcard 1 | 170mm | 175mm | 175mm | 175mm |
Specs
Frame | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
---|---|
Fork | SR Suntour XCT Disc, 100mm |
Rims | CUBE ZX20, 32H, Disc |
Tires | CUBE IMPAC Smartpac, 2.25 |
Crankset | Shimano FC-M315, 36x22T |
Shifters | Shimano SL-M315, Rapidfire-Plus |
Front Derailleur | Shimano FD-M315, Top Swing, 31.8mm Clamp |
Rear Derailleur | Shimano RD-M360, 8-Speed |
Cassette/Freewheel | Shimano CS-HG31, 11-34T |
Chain | KMC Z8.3 |
Brakes | Tektro HD-M275 / TKD-150, Hydr. Disc Brake (160/160) |
Handlebars | CUBE Rise Trail Bar, 680mm |
Tape/Grips | ACID React |
Stem | CUBE Performance Stem, 31.8mm |
Headset | CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated |
Seatpost | CUBE Performance Post, 27.2mm |
Saddle | Natural Fit Venec Lite WS |
Pedals | CUBE PP MTB |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
violetwhite'n'pink / X-Small / 27.5-inch | 04054571375117 | 52520014 | CUB38908598S |
violetwhite'n'pink / X-Small / 29-inch | |||
violetwhite'n'pink / Small / 27.5-inch | 04054571375124 | 52520016 | 20235788519K |
violetwhite'n'pink / Small / 29-inch | |||
violetwhite'n'pink / Medium / 27.5-inch | |||
violetwhite'n'pink / Medium / 29-inch | 04054571375131 | 52520018 | CUB36511264M |
violetwhite'n'pink / Large / 27.5-inch | |||
violetwhite'n'pink / Large / 29-inch | |||
blushmetallic'n'flashyellow / X-Small / 27.5-inch | 4054571419583 | 59807514" / 27.5 / XS | 20257552464S |
blushmetallic'n'flashyellow / X-Small / 29-inch | |||
blushmetallic'n'flashyellow / Small / 27.5-inch | 4054571419590 | 59807516" / 27.5 / S | 20256419368S |
blushmetallic'n'flashyellow / Small / 29-inch | |||
blushmetallic'n'flashyellow / Medium / 27.5-inch | |||
blushmetallic'n'flashyellow / Medium / 29-inch | 4054571419606 | 59807518" / 29 / M | 2025529624M |
blushmetallic'n'flashyellow / Large / 27.5-inch | |||
blushmetallic'n'flashyellow / Large / 29-inch | 4054571419613 | 59807520" / 29 / L | 20255971870L |
