Details
Form or function? With the Stereo 150 C:62 it doesn't have to be a choice - you can have both. The clean lines, neat rocker cover and trunnion shock mount combine efficiency, stability and intuitive handling. Our C:62 carbon is light, tough and builds into a stiff, efficient frame. Boost 148 rear axle spacing works with the tapered head tube and oversized down tube to deliver superb steering precision and pedal input. And we fitted ISCG05 tabs for a chain guide, while short chainstays ensure agile handling and efficient climbing. It's the complete package.
On tough, rowdy trails you need a bike you can rely on. That's why, with the Stereo 150 C:62 SL, we began with Fox's superb 36 Factory GRIP2 fork and Float X Factory shock with Kashima coatings. Newmen's Evolution wheelset features a three-pawl freehub design for better pickup and power delivery. Shimano's legendarily reliable and accurate 1x12 XT gears work with grippy Schwalbe Magic Mary and Big Betty 2.4in tires to keep you rolling. And the powerful Shimano XT hydraulic disc brakes with oversize front rotor have all the speed-scrubbing ability you need to keep you riding flat out, safely. Throw in a Fox Transfer Factory dropper post, and our work here is done. Yours has just begun...

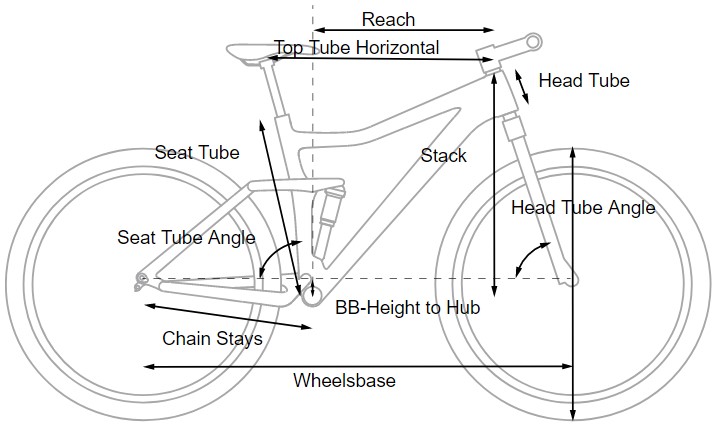

Small | Medium | Large | X-Large | |
---|---|---|---|---|
A. Reach | 417mm | 437mm | 457mm | 477mm |
B. Stack | 619mm | 624mm | 633mm | 651mm |
C. Standover | 736mm | 752.6mm | 766mm | 801mm |
D. Effective Top Tube | 571mm | 592mm | 616mm | 643mm |
E. Head Tube Angle | 66° | 66° | 66° | 66° |
F. Head Tube Length | 95mm | 100mm | 110mm | 130mm |
G. Seat Tube Angle | 75.5° | 75.5° | 75.5° | 75.5° |
H. Seat Tube Length | 375mm | 425mm | 470mm | 520mm |
J. Bottom Bracket Drop | -34mm | -34mm | -34mm | -34mm |
M. Wheelbase | 1167mm | 1189mm | 1213mm | 1241mm |
O. Chainstay Length | 435mm | 435mm | 435mm | 435mm |
Specs
Frame | C:62 Monocoque Advanced Twin Mold Technology, ATG, ETC 4-Link, ISCG Mount, Boost 148, AXH |
---|---|
Fork | Fox 36 Float Factory FIT GRIP2, Tapered, 15x110mm, 160mm, Kashima Coated |
Rear Shock | Fox Float X Factory, 185x55mm, Trunnion Mount, Adjustable LSC w/2-Pos. Lever, Kashima Coated |
Wheels | Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
Crankset | Shimano XT FC-M8100, 32T, Boost, 170mm |
Shifters | Shimano XT SL-M8100-IR, Direct Attach |
Rear Derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
Cassette/Freewheel | Shimano Deore CS-M6100, 10-51T |
Chain | Shimano CN-M6100GUIDE |
Brakes | Shimano XT BR-M8120/M8100, Hydr. Disc Brake (203/180) |
Handlebars | Race Face Chester 35, 780mm |
Tape/Grips | ACID Disrupt, Soft Compound |
Stem | Race Face Aeffect R 35 |
Headset | VP Integrated, Top 1 1/8", Bottom 1 1/2" |
Seatpost | Fox Transfer Factory 31.6mm, Kashima Coated (S: 125mm, M: 150mm, L/XL: 175mm) |
Saddle | Natural Fit Nuance Lite |
Pedals | Sold separately |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
actionteam / X-Large | 04054571354730 | 555200XL | 20236799753L |
