Details

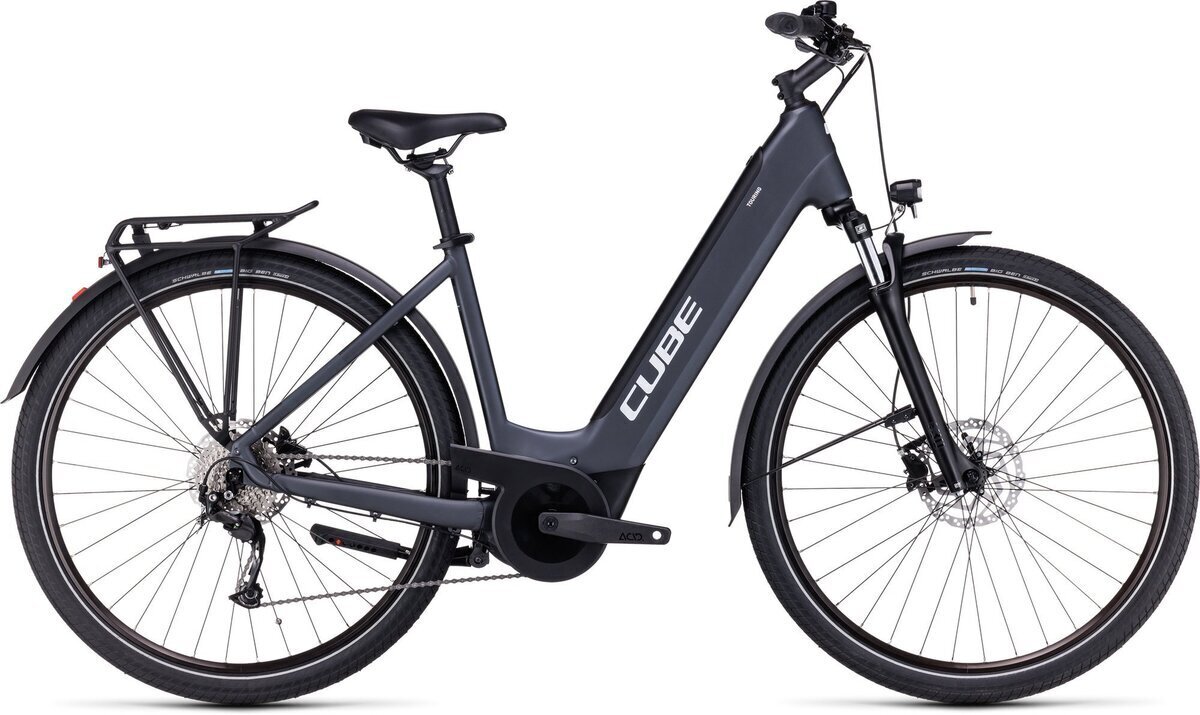

Whether you need to pop to the shops or fancy exploring further afield, the Touring Hybrid ONE has everything you need. The powerful Bosch Performance motor with Smart System, high-capacity battery and easy-to-use Shimano 9-speed gears make light work of any trip, while strong hydraulic disc brakes ensure you can stop safely, whatever the weather. A choice of frame styles and sizes means there’s a great-handling, great-looking Touring Hybrid that’s perfect for you. And a full complement of accessories – semi-integrated carrier, mudguards and kickstand – mean’s you’re all set for any ride.
We made our Touring Hybrid to be versatile, easy to live with and comfortable. The powerful Bosch Performance motor with Bosch Smart System and PowerTube battery are all so neatly integrated into the design, you'll barely notice they're there – apart from the extra help at the pedals, of course. Revised Efficient Comfort Geometry centres around a 63mm travel suspension fork for comfort and control, even on rough roads. The carrier is designed to make carrying a load easier, and the seat clamp even has a hidden tool in its lever. Add the new ACID chain guard, kickstand and full-length mudguards and you've got everything you need.

| 50 cm / Small | 54 cm / Medium | 58 cm / Large | 62 cm / X-Large | |
|---|---|---|---|---|
| A. Reach | 404.4mm | 412.2mm | 417.2mm | 422.3mm |
| B. Stack | 626.5mm | 635.9mm | 655.2mm | 673.4mm |
| C. Standover | 885.8mm | 914.7mm | 941.2mm | 972.3mm |
| D. Effective Top Tube | 595mm | 606mm | 617mm | 628mm |
| E. Head Tube Angle | 69.5° | 69.5° | 69.5° | 69.5° |
| F. Head Tube Length | 105mm | 115mm | 135mm | 155mm |
| G. Seat Tube Angle | 73° | 73° | 73° | 73° |
| H. Seat Tube Length | 480mm | 520mm | 560mm | 600mm |
| J. Bottom Bracket Drop | 67.5mm | 67.5mm | 67.5mm | 67.5mm |
| M. Wheelbase | 1150.9mm | 1162.5mm | 1174.6mm | 1186.6mm |
| O. Chainstay Length | 488mm | 488mm | 488mm | 488mm |
| Width Tires Maximum | 60mm | 60mm | 60mm | 60mm |
Specs
| Fork | SR Suntour NVX30 Coil, 63mm |
|---|---|
| Motor Specs | Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System |
| Charger Type | Bosch 4A |
| Saddle | Natural Fit Sequence Comfort |
| Handlebars | CUBE Comfort Trail Bar, 700mm |
| Pedals | ACID PP Trekking |
| Cassette | Shimano CS-HG201, 11-36T |
| Kickstand | ACID FM Pure Kickstand |
| Mudguards | ACID 65 BB-Mount |
| Frontlight | CUBE Shiny 50 Lux, 12V, DC |
| Back Light | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Bell | Easy Bell |
| Color(s) | grey´n´white |
| Carrier | ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible |
| Battery | Bosch PowerTube 501 |
| Stem | CUBE Performance Stem Pro, 31.8mm |
| Headset | ACROS AZF-1031, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Grips | ACID Travel Comfort |
| Rear Derailleur | Shimano RD-M3100-SGS, 9-Speed |
| Shifters | Shimano SL-M3100-R, Rapidfire-Plus |
| Crankset | ACID E-Crank, 40T, 170mm |
| Rims | Rodi Blackrock 23, 36H, Disc, Tubeless Ready |
| Front Hub | Shimano HB-TX505, QR, Centerlock |
| Rear Hub | Shimano FH-TX505, QR, Centerlock |
| Seat Post | CUBE Performance Post, 30.9mm |
| Chain | KMC X10 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| grey´n´white / 46 cm / XS | 4054571416292 | 695160Easy Entry 46 cm / XS | CUB48300811S |
| grey´n´white / 58 cm / L | 4054571416322 | 695160Easy Entry 58 cm/L | CUB47606293L |
