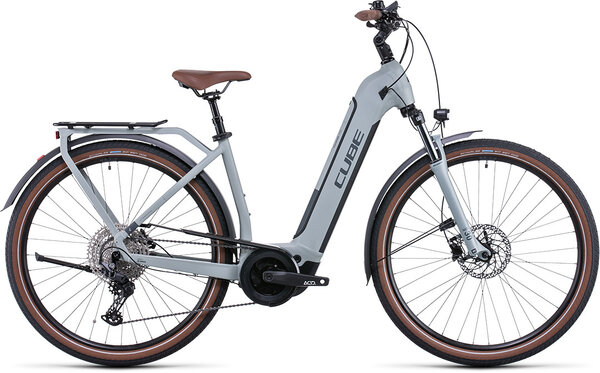

CUBE Bikes Touring Hybrid Pro 500 Easy Entry

CUBE Bikes Touring Hybrid Pro 500 Easy Entry
This item is currently not available.

Details

Have your Touring Hybrid the way you want it. Classic Men's, Trapeze, or Easy Entry - each version features the same attention to detail. Built around Bosch's powerful third-generation motor and PowerTube battery, we've taken care to keep the centre of gravity low for safety and easy handling. Efficient Comfort Geometry does exactly what it says, putting you in the ideal position to enjoy every ride. And the Integrated Carrier is a masterpiece of understated engineering excellence, providing a strong and rigid means of carrying your day-to-day possessions with you.

The beauty of a great bicycle is its versatility - and few bikes are more versatile than the Touring Hybrid Pro. Shimano's wide-ranging 11-speed Deore gears work seamlessly with Bosch's powerful Generation 3 motor and PowerTube battery to get you where you need to be. There's our strong, rigid Integrated Carrier for your essential bits and pieces, powerful Shimano hydraulic disc brakes for all-weather stopping, and full-length mudguards to help keep you dry. We even fitted an integrated lighting system and a kickstand. And an adjustable stem, suspension seatpost and 100mm suspension fork with big-volume, grippy tires all help deliver you to your destination in comfort.

Geometry


Bike Sizes:
Easy Entry 46 cm / X-SmallEasy Entry 50 cm / SmallEasy Entry 54 cm / MediumEasy Entry 58 cm / Large
A. Reach 384.5mm 393.3mm 402mm 410.8mm
B. Stack 668.3mm 673mm 677.7mm 682.5mm
C. Standover 498.2mm 494.1mm 494.1mm 494.1mm
D. Effective Top Tube 590mm 600mm 610mm 620mm
E. Head Tube Angle 68.5° 68.5° 68.5° 68.5°
F. Head Tube Length 145mm 150mm 155mm 160mm
G. Seat Tube Angle 75° 75° 75° 75°
H. Seat Tube Length 440mm 480mm 520mm 560mm
J. Bottom Bracket Drop 75mm 75mm 75mm 75mm
M. Wheelbase 1157.3mm 1167.9mm 1178.5mm 1189.1mm
O. Chainstay Length 490mm 490mm 490mm 490mm
Width Tires Maximum 56mm 56mm 56mm 56mm

Specs

Frame Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Integrated Carrier 2.0
Fork SR Suntour NVX30 Coil, 100mm
Rims CUBE EX23, 36H, Disc, Tubeless Ready
Tires Schwalbe Big Ben, Performance, K-Guard, 55-622
Crankset ACID E-Crank, 40T, 175mm (EE: 170mm)
Shifters Shimano Deore SL-M5100, Rapidfire-Plus
Rear Derailleur Shimano Deore RD-M5100-SGS, 11-Speed
Cassette/Freewheel Shimano Deore CS-M5100, 11-51T
Chain KMC X11
Brakes Shimano BR-MT200, Hydr. Disc Brake (180/180)
Handlebars CUBE Comfort Trail Bar, 700mm
Tape/Grips Natural Fit Comfort
Stem CUBE Comfort Stem Pro, 31.8mm, Adjustable
Headset M/Z: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
EE: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seatpost CUBE Suspension Seatpost HD, 30.9mm
Saddle Natural Fit Sequence Comfort
Pedals ACID PP Trekking
Accessories & Extras FRONT LIGHT CUBE Shiny 50 Lux, 12V, DC
REAR LIGHT ACID Mudguard Rear Light PRO-E, 12V, DC
KICKSTAND CUBEstand Cmpt
MUDGUARDS ACID 65 BB-Mount
BELL Easy Bell
CARRIER CUBE Integrated Carrier 2.0, ACID RILink Adapter Compatible, SnapIt Compatible
Motor Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
Battery Bosch PowerTube 500
Controller/Display Bosch Intuvia
Charger Bosch 2A

* Subject to change without notice.
