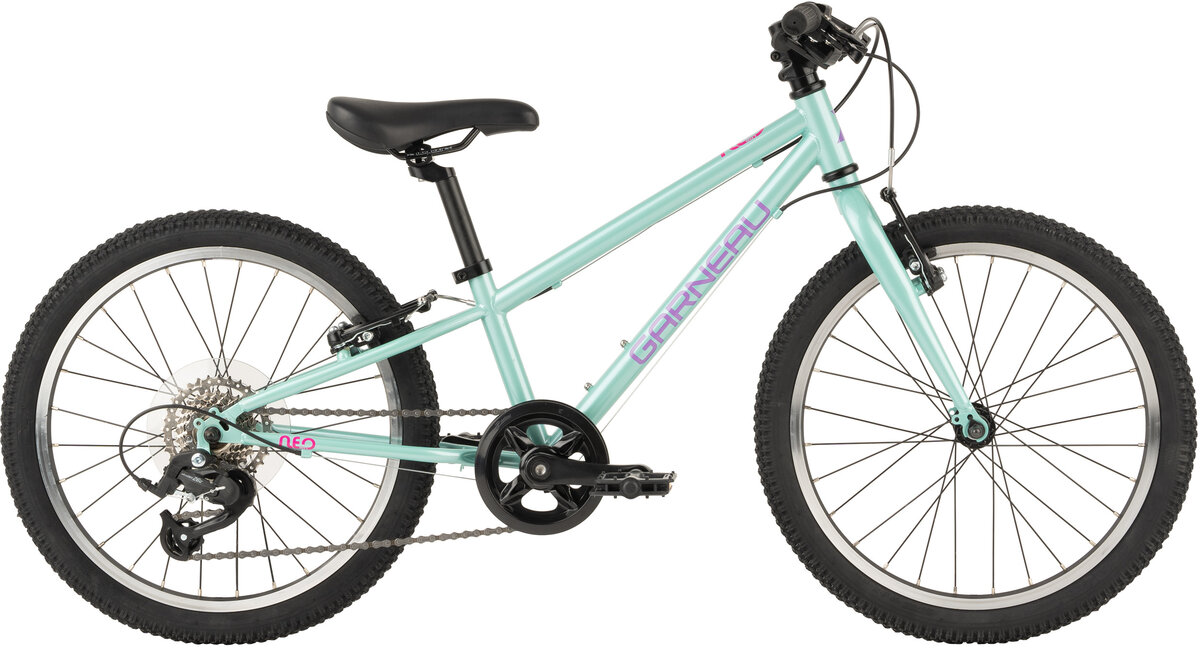

Garneau Neo 207
This item is currently not available.
Details
If you want your child to experience the thrill of riding, you've come to the right place. This modern hybrid bike has a higher handlebar for better ergonomic. It contains several aluminum parts, including the brakes, rims and crankset. With a 7-speed Falcon GYR derailleur, it's extra stable on all surfaces. This bike was built to last.

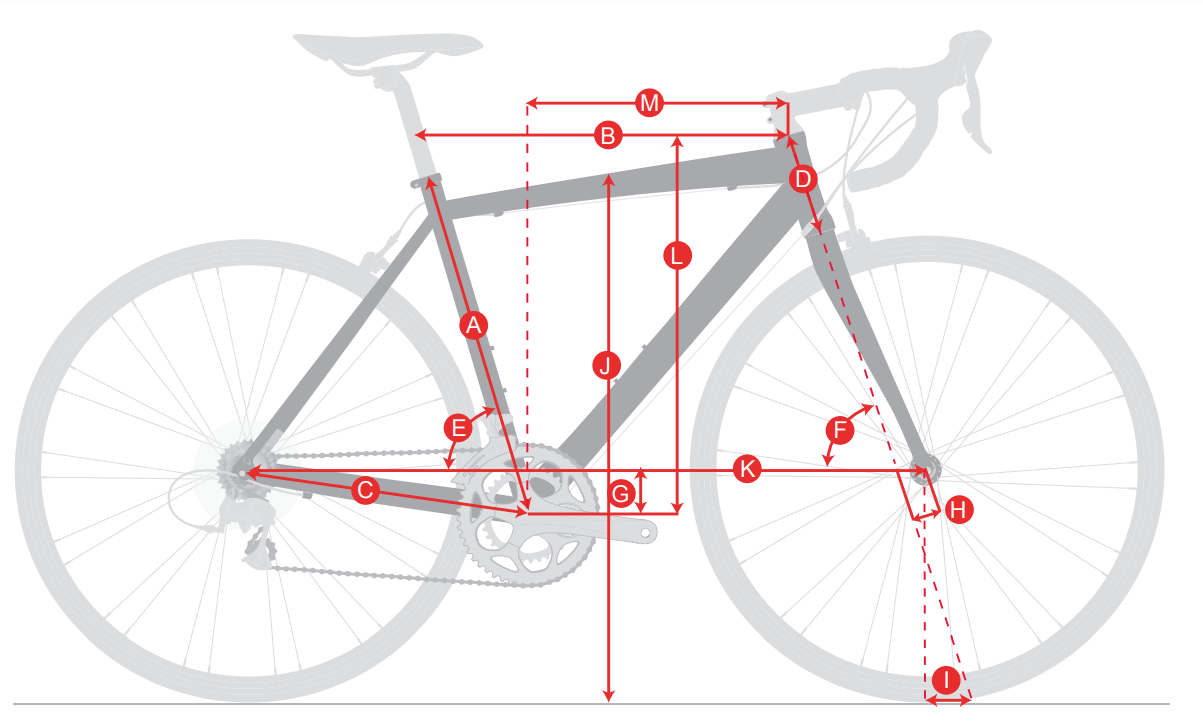

| Size | O/S | |
|---|---|---|
| A | Seat tube length (mm) | 240 |
| B | Effective top tube length (mm) | 448 |
| C | Chain stay length (mm) | 375 |
| E | Seat tube angle (°) | 71.5 |
| F | Head tube angle (°) | 69 |
| G | Bottom bracket drop (mm) | 45 |
| H | Fork offset (mm) | 35 |
| I | Trail (mm) | 60 |
| J | Standover height (mm) | 511 |
| K | Wheelbase (mm) | 861 |
| L | Stack (mm) | 421 |
| M | Reach (mm) | 308 |
Specs
| Frame | HTS steel |
|---|---|
| Fork | HTS steel |
| Wheels | Aluminum 24'' / SF freewheel hubs |
| Rims | Aluminum, 24'', 32h |
| Hubs |
Front: SF, Aluminum Rear: SF, Aluminum, freewheel |
| Spokes | 14g, Stainless steel |
| Tires | 24 x 1.95'' |
| Bottom Bracket | Square taper, 68 x 118mm |
| Crankset | Aluminum,3-pcs, 32T |
| Shifters | Microshift TS71-7, Trigger |
| Rear Derailleur | Microshift M26CS |
| Cassette/Freewheel | Freewheel 14-32T, 7-speed |
| Chain | KMC Z7 |
| Brakes | Aluminum, V-type |
| Brake Levers | Junior specific, aluminum/resin |
| Handlebars | Aluminum, 40mm rise, Ø25.4 mm |
| Tape/Grips | Garneau Junior |
| Stem | Aluminum, Ahead, 40mm, 10° |
| Headset | Threadless , 1 1/8'' |
| Seatpost | Aluminum, Ø25.4 mm |
| Saddle | Garneau Junior |
| Pedals | Platform |
* Subject to change without notice.
