Details

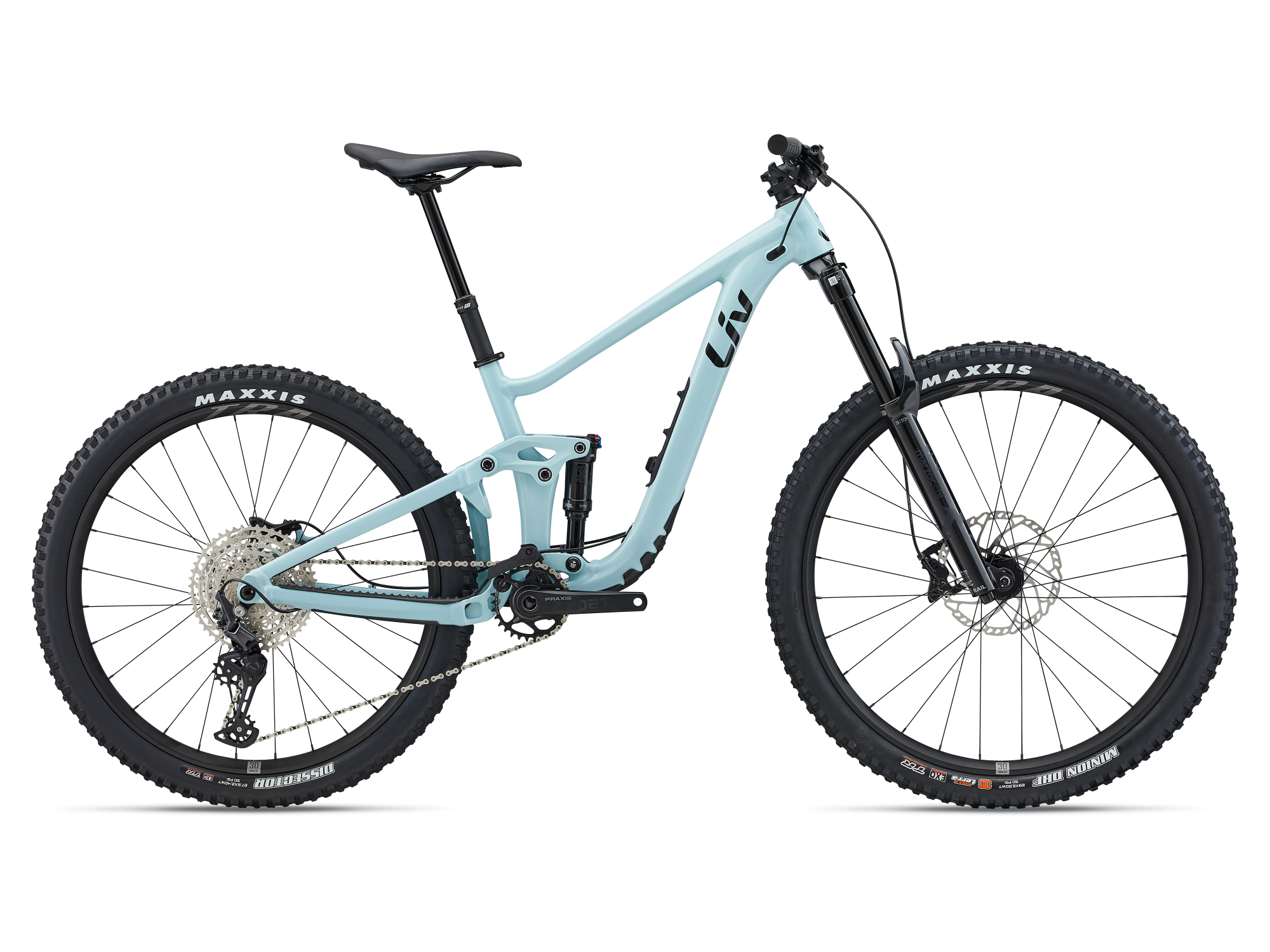

Whether you're looking ahead to park days, staring down a rocky line you’re determined to conquer, or preparing for your first enduro race – the all-new Intrigue LT equips you with the versatility of adjustable frame geometry, the durability of ALUXX SL-grade aluminum and the ultra-smooth performance of Maestro suspension so you can say “YES!” to it all.
Key Performance Factors:
Performance Long Travel Trail
Lightweight Advanced-grade composite frameset with integrated down tube storage features a slacker head tube angle for confidence on technical terrain and a longer reach to keep you centered and in control in the corners. The 150mm of Maestro rear wheel suspension has been custom tuned by women who shred, for women who shred. And paired with 160mm of front suspension, you’ve got a bike that is equal parts agile and burly.
Adjustable Frame Geometry
Equipped with the new flip chip – Maestro 3, you can easily change the head tube and seat tube angles, bottom bracket height and rear wheel size* to fine-tune handling for varying trail conditions and your personal riding style. *Sizes M and L only
Best of Both Wheels
Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, provides a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customize your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M and L
Frame Size | X-Small | Small | Medium | Large |
---|---|---|---|---|
Geometry Position | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH |
Seat Tube Length (mm) | 370 | 390 | 420 | 450 |
Seat Post Insertion Depth (mm) | 230 | 250 | 280 | 310 |
Seat Tube Angle | 76.2° | 76.6° | 77.0° | 76.2° | 76.6° | 77.0° | 77.3° | 77.6° | 78.0° | 77.3° | 77.6° | 78.0° |
Top Tube Length (mm) | 552 | 552 | 550 | 567 | 566 | 565 | 581 | 580 | 579 | 603 | 602 | 601 |
Head Tube Length (mm) | 95 | 95 | 100 | 110 |
Head Tube Angle | 64.7° | 65.1° | 65.5° | 64.6° | 65.1° | 65.5° | 64.8° | 65.1° | 65.5° | 64.8° | 65.1° | 65.5° |
Fork Rake (mm) | 44 | 44 | 44 | 44 |
Trail (mm) | 131 | 127.9 | 124.8 | 131.6 | 127.8 | 124.8 | 130.6 | 127.7 | 124.8 | 130.5 | 127.7 | 124.8 |
Wheelbase (mm) | 1166 | 1166 | 1164 | 1183 | 1180 | 1179 | 1208 | 1207 | 1207 | 1232 | 1231 | 1231 |
Chain Stay Length (mm) | 443 | 442 | 440 | 443 | 442 | 440 | 443 | 442 | 440 | 443 | 442 | 440 |
Bottom Bracket Drop (mm) | 25 | 20 | 15 | 24 | 20 | 15 | 35 | 30 | 25 | 35 | 30 | 25 |
Stack (mm) | 629 | 627 | 624 | 628 | 627 | 624 | 628 | 625 | 622 | 637 | 634 | 631 |
Reach (mm) | 398 | 402 | 406 | 413 | 417 | 421 | 439 | 442 | 447 | 459 | 462 | 467 |
Stand Over Height (mm) | 613 | 613 | 613 | 674 | 674 | 674 | 712 | 712 | 712 | 750 | 750 | 750 |
Handlebar Width (mm) | 760 | 760 | 760 | 780 |
Stem Length (mm) | 40 | 50 | 50 | 50 |
Crank Length (mm) | 165 | 170 | 170 | 170 |
Wheel Size | F 29 | R 27.5 | F 29 | R 27.5 | 29" | 29" |
Frame Size | Rider Height (cm) | Rider Height (in) |
---|---|---|
X-Small | 150 - 163 | 4'11" - 5'4" |
Small | 158 - 169 | 5'2" - 5'7" |
Medium | 164 - 175 | 5'5" - 5'9" |
Large | 170 - 181 | 5'7" - 5'11" |
Specs
Pedals | Sold Separately |
---|---|
Fork | Giant STL 34 RCL, 140mm, 44mm offset, 15x110mm thru-axle, custom tuned |
Hubs |
[F] Giant MTB alloy, 6-bolt, sealed [R] Giant MTB alloy, 6 bolt, 72t POE, sealed, HG driver |
Rims | 27.5" and 29": Giant TRA 2 wheelset, 6061 alloy, hookless, 30mm IW, 40mm OW, 21mm H, Wide Guard Technology |
Stem | Giant Contact SL 35 |
Chain | KMC X11 |
Frame | ALUXX-grade aluminum, 120mm FlexPoint Suspension, 12x148mm thru-axle |
Tires |
27.5" [F] Maxxis Minion DHF 27.5x2.6, EXO, TR, [R] Maxxis Dissector 27.5x2.6, Dual, EXO, TR, tubeless 29" [F] Maxxis Minion DHF 29x2.5 WT, EXO, TR, [R] Maxxis Dissector 29x2.4 WT, Dual, EXO, TR, tubeless |
Brakes |
Shimano BR-MT420, hydraulic Shimano RT-26 rotors, [F]180mm, [R]180mm |
Saddle | Liv Sylvia |
Spokes | Sapim |
Crankset |
[27.5] Shimano CUES U6000, 30t [29] Praxis Cadet 30t |
Seatpost |
Giant Contact Switch AT adjustable dropper, remote XS, S: 70-100mm travel / 30.9 x 315mm M, L: 110-140mm travel / 30.9 x 395mm |
Shifters | Shimano CUES U6000, 1x10 |
Handlebars | Giant Contact TR35, 20mm rise, 35mm |
Tape/Grips | Liv Sole-O |
Brake Levers | Shimano Deore BL-MT401 |
Bottom Bracket |
[27.5] Shimano, threaded [29] Praxis threaded |
Rear Derailleur | Shimano CUES RD-U6000 |
Accessories & Extras | tubeless prepared, max tire size 2.6", max chainring size 32t |
Cassette/Freewheel | Shimano CUES, LinkGlide, 10-speed, 11x48 |
Rear Shock | Suntour Raidon R, 184/44 |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Soap Suds / Medium / 29-inch | 4711291146907 | 1059016105 | LIV23609620M |
Soap Suds / X-Small / 27.5-inch | 4711291146884 | 1059016103 | LIV24422743S |
Soap Suds / Small / 27.5-inch | 4711291146891 | 1059016104 | LIV23415594S |
Soap Suds / Large / 29-inch | 4711291146914 | 1059016107 | LIV23730205L |
