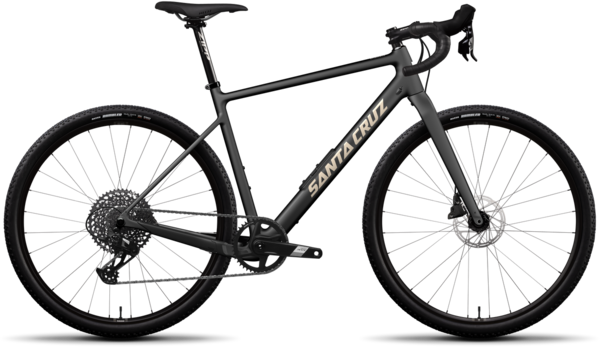

Santa Cruz Stigmata Apex

Santa Cruz Stigmata Apex
  • Color: Matte Carbon
  • Color: British Racing Green
$5,199.00
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Due to restrictions, we are unable to ship this item. Please email onlineorders@woodcockcycle.com for more information.

Details

The Stigmata blurs the lines between free-roading drop bar singletrack slicer and buckled down race-winning gravel machine. It’s designed for the rider lining up for The Big Event, escaping via the road less traveled or who can’t help themselves from finding the hardest way there. Whether your style is baggy or zipped up, the Stigmata is the fast and loose riding partner that’s always ready to rise to the occasion.

GRAVITATING TO GRAVEL
The Stigmata is an off-road speed bike (think swift, not Zwift). Its singletrack prowess stems from progressive geometry, plenty of room for big tires, and insights from our mountain bikes. It’s the roadie’s off-roader, perfect for exploring wild routes, and also ideal for mountain bikers seeking adventure off the beaten path.

GO FAR TO GET FOUND
If wanderlust has taken hold, grab a Stigmata. Whether you're close to home or exploring far-off lands, its design and features ensure you can go the distance. Whether you’re seeking the spirit of gravel or planning a quick overnight mission with only a credit card, the Stigmata is your ultimate getaway vehicle.

LIGHT, FAST, AND MORE METTLE
When lining up at a gravel race, you need a bike that lifts you. It should have geometry that’s fast in the pack yet stable when you're deep in the hurt locker. A lightweight frame ensures you’re making watts, not carrying extra grams, and ample tire clearance prevents you from hauling an extra 10 lbs of Kansas clay.

Frame SizeX-SmallSmallMediumLargeX-LargeXX-Large
Reach (cm / in) 37.5 / 14.76 39.0 / 15.35 40.5 / 15.94 42.0 / 16.54 43.5 / 17.13 45.0 / 17.72
Stack (cm / in) 55.0 / 21.65 56.4 / 22.20 57.6 / 22.68 60.0 / 23.62 61.2 / 24.09 63.1 / 24.84
Head tube angle (degree) 69.5 69.5 69.5 69.5 69.5 69.5
Head tube length (cm / in) 9.0 / 3.54 10.5 / 4.13 12.0 / 4.72 14.5 / 5.71 16.0 / 6.30 18.0 / 7.09
Rear center (cm / in) 42.3 / 16.65 42.3 / 16.65 42.3 / 16.65 42.3 / 16.65 42.3 / 16.65 42.3 / 16.65
Front center (cm / in) 60.5 / 23.82 62.5 / 24.61 64.5 / 25.39 66.8 / 26.30 68.8 / 27.09 71.0 / 27.95
BB height (cm / in) 27.8 / 10.94 27.8 / 10.94 28.0 / 11.02 28.0 / 11.02 28.2 / 11.10 28.2 / 11.10
BB drop (cm / in) 7.8 / 3.07 7.8 / 3.07 7.6 / 2.99 7.6 / 2.99 7.4 / 2.91 7.4 / 2.91
Wheelbase (cm / in) 102.3 / 40.28 104.3 / 41.06 106.3 / 41.85 108.7 / 42.80 110.8 / 43.62 113.0 / 44.49
Top tube length (cm / in) 53.3 / 20.98 55.2 / 21.73 57.0 / 22.44 59.2 / 23.31 61.0 / 24.02 63.1 / 24.84
Seat tube length (cm / in) 45.0 / 17.72 45.5 / 17.91 48.5 / 19.09 51.5 / 20.28 54.5 / 21.46 57.5 / 22.64
Seat tube angle (degree) 74 74 74 74 74 74
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
X-Small 152 - 160 60 - 63
Small 160 - 168 63 - 66
Medium 168 - 175 66 - 69
Large 175 - 183 69 - 72
X-Large 183 - 188 72 - 74
XX-Large 188 - 193 74 - 76

Specs

Frame Carbon CC Gravel
Rims WTB ASYM i25 28h 700c
Hubs Front: DT Swiss 370, 12x100, Centerlock, 28h
Rear: DT Swiss 370, 12x142, XDr, Centerlock, 28h
Tires Maxxis Rambler, 700x45c, DC, EXO
Bottom Bracket SRAM DUB 68mm Road Wide BB
Crankset SRAM Apex, 42t XS/S: 170mm, M/L: 172.5mm, XL/XXL 175mm
Shifters SRAM Apex
Rear Derailleur SRAM Apex Eagle, 12spd
Cassette/Freewheel SRAM XG1275 Eagle, 12spd, 10-50t
Chain SRAM SX Eagle, 12spd
Brakes SRAM Apex
Rotors SRAM Centerline, Centerlock, 160mm
Handlebars Zipp Service Course 70 XPLR AL Bar, 31.8 XS/S: 42cm, M: 44cm, L/XL/XXL: 46cm
Tape/Grips Velo Bar Tape
Stem Zipp Service Course Stem All Sizes: 70mm
Headset FSA IS-2/47/42 ACB
Seatpost Zipp Service Course, 27.2 All Sizes: 350mm
Saddle WTB Silverado Medium, CroMo

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
British Racing Green / X-Small / 700c 192219498379 58-26290-390-1-910-000001
British Racing Green / Small / 700c 192219498393 58-26290-390-2-910-000001
British Racing Green / Medium / 700c 192219498416 58-26290-390-3-910-000001
British Racing Green / Large / 700c 192219498430 58-26290-390-4-910-000001
British Racing Green / X-Large / 700c 192219498454 58-26290-390-5-910-000001
British Racing Green / XX-Large / 700c 192219498478 58-26290-390-6-910-000001
Matte Carbon / X-Small / 700c 192219498362 58-26290-390-1-909-000001
Matte Carbon / Small / 700c 192219498386 58-26290-390-2-909-000001
Matte Carbon / Medium / 700c 192219498409 58-26290-390-3-909-000001
Matte Carbon / Large / 700c 192219498423 58-26290-390-4-909-000001 SAN43236700N
Matte Carbon / X-Large / 700c 192219498447 58-26290-390-5-909-000001
Matte Carbon / XX-Large / 700c 192219498461 58-26290-390-6-909-000001
