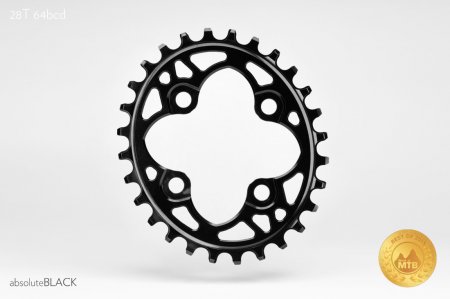

Absolute Black OVAL 64BCD MOUNTAIN CHAINRING N/W

-Long, 4 bolts and nuts available for special order. Our Premium 1X 64bcd Oval traction chainrings are designed for any cranks that have 64bcd mounting interface. This is the most common mounting standard. Advantages of our special 64bcd ...(Read More)

Absolute Black OVAL 64BCD MOUNTAIN CHAINRING N/W
  • Color: Black
  • Color: Green
  • Color: Red
$79.99
Please select options
Availability: Email onlineorders@woodcockcycle.com
Add to Wish List

Details

-Long, 4 bolts and nuts available for special order.

Our Premium 1X 64bcd Oval traction chainrings are designed for any cranks that have 64bcd mounting interface. This is the most common mounting standard.

Advantages of our special 64bcd chainrings:

- Finest design to provide excellent weight to strength ratio
- One of a kind special oval shape (Patent Pending)
- Unique Patent Pending narrow-wide teeth profiles to keep your chain in place for minimum 12 months!
- Superb quality and great look.
- You will ride faster using ovals. If you keep using a round ring then others will get quicker.
- You will not "feel" the oval shape at all
- Reduces stress on knees

32T chainring has build-in 2mm spacers and threaded holes (M8x0.75) to accommodate this size on spider. Other sizes have regular 10mm holes.

The World's best oval (elliptical) narrow/wide 104bcd traction chainring - period. Non circular chainrings, Non-round chainrings.

Designed in UK. Manufactured in Poland (EU).

Size (Mass +/-1g): 64BCD: 26T (35g), 28T (42g)
Color: Black, Racing Red, Cannondale Green
Compatibility: All cranks with 4x 104BCD interface. That means Shimano XT / Zee / Deore / SLX / XTR, Race Face, FSA, E13 etc
Material: cnc machined 7075 Txxx Aluminum. Long-lasting construction
Finish: type II anodizing
Mounting holes: 4 x 104mm BCD (for 32T ring, bolts should be min 6mm long)
Ovality: Optimized to each size separately.
Range: 10.2-14.4% and Timing of 110.5-116.3° after TDC (top dead center) Patent Pending



Frame clearance (biggest dimension of the oval tip to tip of tooth):

  • 26T: 118mm
  • 28T: 127mm
  • 32T: 143mm
  • 34T: 151mm
  • 36T: 159mm
