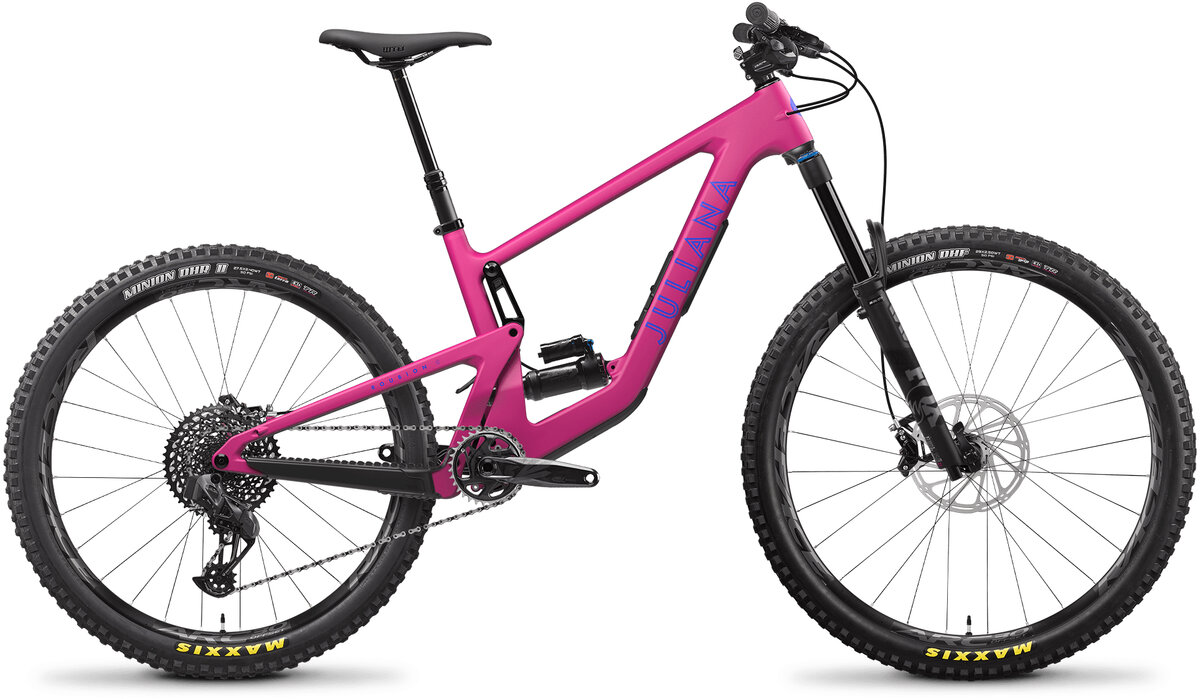

Juliana Roubion C S
$7,149.00
Details
Whether blind racing or just blindly enjoying the trails as they come, the Roubion's MX wheel combo feels like the best mix since Aperol met spritz. A 29-inch front wheel serves up high-speed stability and high rolling confidence. Meanwhile the 27.5-inch rear wheel makes for an intuitive and highly maneuverable rear end that loves to get sideways around the most ragged of switchbacks. We're pretty sure there's no better bike to tackle alpine terrain.
Wheel Size:
- Size X-Small: 27.5-inch
- Sizes Small – Medium: 29-inch front / 27.5-inch rear
| XS | S | M | |
|---|---|---|---|
| A. Reach | 405mm | 430mm | 455mm |
| B. Stack | 594mm | 617mm | 626mm |
| C. Standover | 701mm | 709mm | 731mm |
| D. Effective Top Tube | 536mm | 570mm | 599mm |
| E. Head Tube Angle | 64.7° | 64.7° | 64.7° |
| F. Head Tube Length | 110mm | 100mm | 110mm |
| G. Seat Tube Angle | 77.6° | 77.2° | 77.1° |
| H. Seat Tube Length | 370mm | 380mm | 405mm |
| I. Bottom Bracket Height | 344mm | 344mm | 344mm |
| J. Bottom Bracket Drop | 10mm | 29/10mm | 29/10mm |
| M. Wheelbase | 1149mm | 1188mm | 1221mm |
| N. Front to Center | 722mm | 757mm | 786mm |
| O. Chainstay Length | 427mm | 431mm | 435mm |
| XS | S | M | |
|---|---|---|---|
| A. Reach | 402mm | 427mm | 452mm |
| B. Stack | 595mm | 619mm | 628mm |
| C. Standover | 698mm | 706mm | 727mm |
| D. Effective Top Tube | 542mm | 575mm | 604mm |
| E. Head Tube Angle | 64.5° | 64.5° | 64.5° |
| F. Head Tube Length | 110mm | 100mm | 110mm |
| G. Seat Tube Angle | 76.9° | 76.7° | 76.6° |
| H. Seat Tube Length | 370mm | 380mm | 405mm |
| I. Bottom Bracket Height | 341mm | 341mm | 341mm |
| J. Bottom Bracket Drop | 13mm | 32/13mm | 32/13mm |
| M. Wheelbase | 1154mm | 1159mm | 1222mm |
| N. Front to Center | 722mm | 757mm | 786mm |
| O. Chainstay Length | 432mm | 432mm | 436mm |
| Frame Size | Rider Height |
|---|---|
| X-Small | 4'8" - 5'1" |
| Small | 5'1" - 5'5" |
| Medium | 5'5" - 5'9" |
Specs
| Frame | Carbon C |
|---|---|
| Fork | FOX 36 Float Performance, 160mm |
| Rear Shock | RockShox Super Deluxe Select+ |
| Rims | RaceFace AR Offset 30 29" (f) 27.5" (r) Rims |
| Hubs |
Front: DT Swiss 370, 15x110, 28h Rear: DT Swiss 370, 12x148, XD, 36t, 28h |
| Tires |
Front: Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO, TR Rear: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO, TR |
| Bottom Bracket | SRAM DUB 68/73mm Threaded BB |
| Crankset | SRAM GX Eagle 148 DUB, 32t |
| Shifters | SRAM GX Eagle, 12spd |
| Rear Derailleur | SRAM GX Eagle, 12spd |
| Cassette/Freewheel | SRAM XG1275 Eagle, 12spd, 10-50t |
| Chain | SRAM GX Eagle, 12spd |
| Brakes | SRAM Code R |
| Rotors | Avid Centerline 200mm/180mm |
| Handlebars | Burgtec RideWide Alloy Bar, 800mm |
| Tape/Grips | Juliana House Grips |
| Stem | Burgtec Enduro MK3, 42mm |
| Headset | Cane Creek 40 IS Integrated Headset |
| Seatpost | RockShox Reverb Stealth, 31.6 |
| Saddle | Juliana Segundo Saddle |
| Pedals | Sold separately |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Matte Fuchsia / X-Small / 27.5-inch | 192219287522 | 58-23242-107-1-782-331501 | SAN30368251S |
| Matte Fuchsia / Small / 29-inch front / 27.5-inch rear | 192219287553 | 58-23242-148-2-782-331101 | SAN29170209S |
| Matte Fuchsia / Medium / 29-inch front / 27.5-inch rear | 192219287560 | 58-23242-148-3-782-331101 | SAN29661734S |
