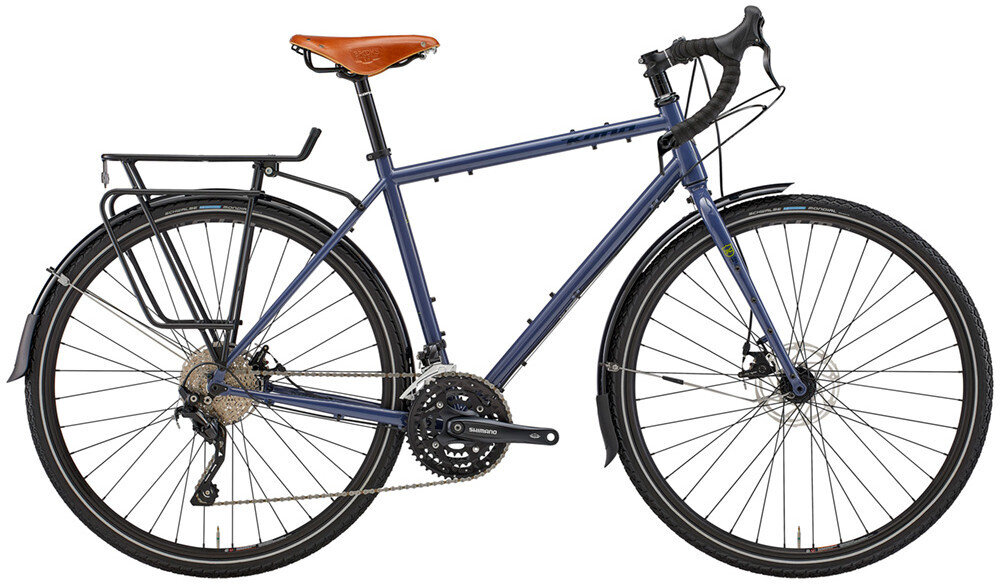

Kona Sutra SE

Kona Sutra SE
  • Color: Gloss Dusky Purple
$2,199.99
Color: Gloss Dusky Purple
Size: Select size
Please select options Unavailable

Details

The Sutra SE is the perfect bike for the rider that knows exactly what they want in a long-haul touring bike. The traditionalist in them wants a 3x drivetrain and bar-end shifters. They want steel because everyone knows that steel isn't just the right way—it's the only way. Get out your bike packing gear, plan your trip, and mount up. The Sutra SE is ready to take you across the city or across the continent with comfort and ease.

bike frame with labeled dimensions
Bike Sizes:
485052545658
A. Reach 375mm 380mm 385mm 390mm 395mm 400mm
B. Stack 551mm 570mm 591mm 610mm 632mm 650mm
C. Standover 752mm 770mm 793mm 813mm 835mm 854mm
D. Effective Top Tube 523mm 538mm 555mm 571mm 588mm 606mm
E. Head Tube Angle 70.5° 70.5° 70.5° 70.5° 70.5° 70.5°
F. Head Tube Length 95mm 115mm 140mm 160mm 185mm 205mm
G. Seat Tube Angle 75° 74.5° 74° 73.5° 73° 72.5°
H. Seat Tube Length 480mm 500mm 520mm 540mm 560mm 580mm
I. Bottom Bracket Height 281mm 281mm 283mm 283mm 285mm 285mm
J. Bottom Bracket Drop 74mm 74mm 72mm 72mm 70mm 70mm
K. Fork Rake/Offset 50mm 50mm 50mm 50mm 50mm 50mm
M. Wheelbase 1035mm 1047mm 1061mm 1073mm 1086mm 1099mm
N. Front to Center 601mm 613mm 626mm 638mm 651mm 663mm
O. Chainstay Length 445mm 445mm 445mm 445mm 445mm 445mm
Fork Length 415mm 415mm 415mm 415mm 415mm 415mm
Sizes:
SizeHeight (in)Height (cm)Inseam (in)Inseam (cm)
48cm 4'10"-5'1" 147-155cm 24”-27” 61-69cm
48-50cm 5'0"-5'3" 152-160cm 26"-29" 66-74cm
48-52cm 5'2"-5'7" 157-170cm 27"-30" 69-76cm
52-54cm 5'6"-5'10" 168-178cm 29"-31" 74-79cm
54-56cm 5'9"-6'0" 175-183cm 30"-33" 76-84cm
54-58cm 5'11"-6'2" 180-188cm 32"-35" 81-89cm
56-58cm 6'1"-6'5" 185-196cm 33"-36" 84-91cm

Specs

Frame Kona Cromoly Butted
Fork Kona Project Two Cromoly Disc Touring
Rims WTB ST i23 TCS 2.0
Hubs Front: Formula 100x12mm
Rear: Formula 142x12mm
Spokes Stainless Black 14g
Tires Schwalbe Marathon Mondial 700x40c
Bottom Bracket Shimano 73mm
Crankset Shimano Deore
Chainrings 26/36/48t
Shifters MicroShift Barend
Front Derailleur Shimano Deore
Rear Derailleur Shimano Deore SGS
Cassette/Freewheel Shimano Deore 11-36t 10spd
Chain Shimano Deore
Brakes TRP Spyre C Flat mount
Rotors TRP Spyre C 160mm
Brake Levers Tektro RRL-A
Handlebars Kona Road
Tape/Grips Kona Cork Tape
Stem Kona Road
Headset FSA TH848
Seatpost Kona Deluxe Thumb w/Offset 27.2mm
Saddle Brooks B17 Leather
Pedals Sold separately
Accessories & Extras Fenders w/Mudflaps, Pannier Rack

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Dusky Purple / 48cm 841073149162 B35SUSE48 20221514798M
Gloss Dusky Purple / 50cm 841073149179 B35SUSE50 20219174725M
Gloss Dusky Purple / 52cm 841073149186 20219234070M
Gloss Dusky Purple / 56cm 841073149209 B35SUSE56 2021994113M
Gloss Dusky Purple / 58cm 841073149216 B35SUSE58 20219607904M
