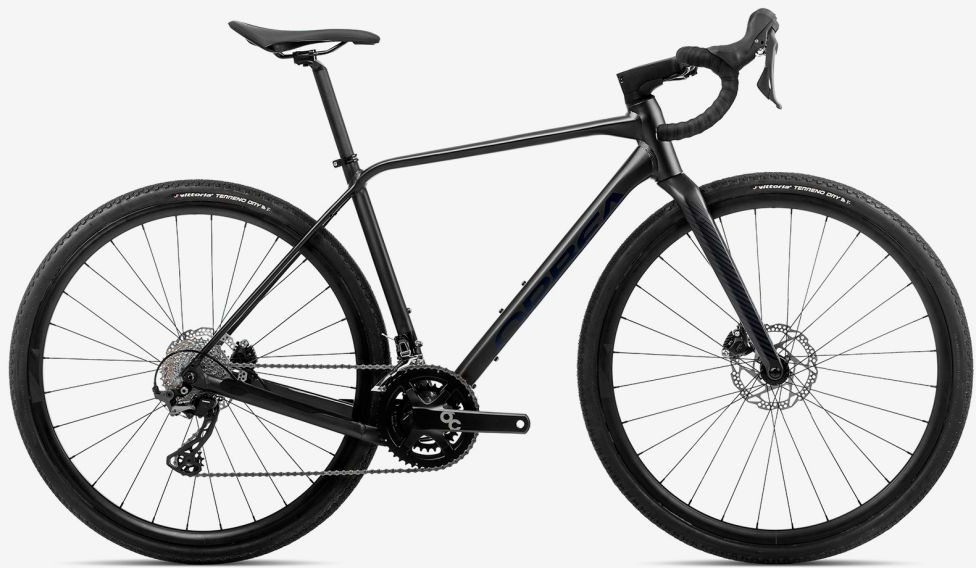

Orbea Terra H30

Orbea Terra H30
  • Color: Metallic Night Black (Matt-Gloss)
  • Color: Mango Gloss
  • Color: Metallic Copper Matt
$2,999.99 - $3,599.99
$3,599.99
Color: Metallic Night Black (Matt-Gloss)
Size: Select size
Please select options Unavailable

Details

Endless exploring, overnight adventures, rough backroads and gravel trails, there are a lot of ideas about what gravel is. What isn't in doubt is that a gravel bike needs to do them all with control, speed and comfort but above all with a thirst for fun. Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you.

Geometry Chart:
X-SmallSmallMediumLargeX-LagreXX-Large
11 - SEAT TUBE (C-T) 425 458 491 524 557 590
22 - TOP TUBE (EFF) 526 539 558 570 590 603
33 - HEAD TUBE 110 131 152 178 199 220
44 - CHAINSTAY 430 430 430 430 430 430
55 - BB HEIGHT (30-622) 263 263 263 265 265 265
65 - BB HEIGHT (40-622) 278 278 278 280 280 280
76 - BB DROP 78 78 78 76 76 76
87 - WHEELBASE 1020 1030 1039 1054 1063 1072
98 - HEAD ANGLE 70º 70.5º 71º 71º 71.5º 72º
109 - SEAT ANGLE 74º 74º 73.5º 73.5º 73º 73º
1110 - STANDOVER (30-622) 704 731 759 788 815 838
1210 - STANDOVER (40-622) 718 746 773 803 830 853
1311 - REACH 375 382 389 395 402 409
1412 - STACK 526 548 570 592 614 636
1513 - FORK LENGTH 390 390 390 390 390 390
16TRAIL (30-622) 66 62 59 59 56 53
17TRAIL (40-622) 71 68 64 64 61 58
Sizes:
Frame SizeRider Height (in)
X-Small 61.1"-65.4"
Small 65.7"-67.7"
Medium 68.1"-70.5"
Large 70.9"-72.8"
X-Large 73.2"-75.2"
XX-Large 75.6"-81.5"

Specs

Frame Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system
Fork Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
Wheels Alloy, Tubeless, 700c, 21c
Axles Front: Orbea Thru Axle 12x100mm M12x2 P1 Solid
Rear: Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded
Tires Vittoria Terreno Dry Gravel 700x38c
Crankset Alloy forged 30x46t
Shifters Shimano ST-RX600
Front Derailleur Shimano GRX RX810
Rear Derailleur Shimano RD-RX810
Cassette/Freewheel Shimano 105 R7000 11-34t 11-Speed
Chain Shimano HG 601
Brakes Shimano RX400 Hydraulic disc
Handlebars OC Gravel GR30-R, Rise 15, Reach 70, Drop 125
Stem OC Road Performance RP21, -6º
Headset FSA 1-1/2" Integrated Aluminium Cup
Seatpost Carbon, 27.2mm, Setback 20
Saddle Fizik Aliante R5
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Metallic Night Black (Matt-Gloss) / X-Small 08434446226649 N14002D9 ORB25459249S
Metallic Night Black (Matt-Gloss) / Small 08434446226670 N14003D9 ORB28491036L
Metallic Night Black (Matt-Gloss) / Medium 08434446226724 N14005D9
Metallic Night Black (Matt-Gloss) / Large 08434446226762 N14007D9 ORB28747956E
Metallic Night Black (Matt-Gloss) / X-Large 08434446226793 N14009D9
Metallic Night Black (Matt-Gloss) / XX-Large 08434446226823 N14010D9
Mango Gloss / X-Small 08434446226656 N14002DA
Mango Gloss / Small 08434446226687 N14003DA
Mango Gloss / Medium 08434446226748 N14005DA
Mango Gloss / Large 08434446226779 N14007DA
Mango Gloss / X-Large 08434446226809 N14009DA
Mango Gloss / XX-Large 08434446226830 N14010DA
Metallic Copper Matt / X-Small 08434446226632 N14002D8
Metallic Copper Matt / Small 08434446226663 N14003D8
Metallic Copper Matt / Medium 08434446226700 N14005D8
Metallic Copper Matt / Large 08434446226755 N14007D8
Metallic Copper Matt / X-Large 08434446226786 N14009D8
Metallic Copper Matt / XX-Large 08434446226816 N14010D8
