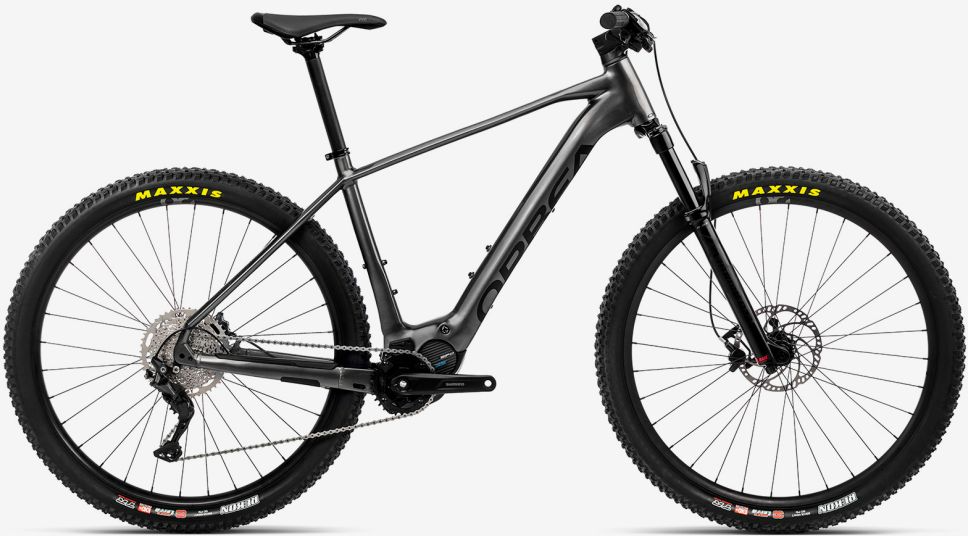

Orbea Urrun 30 20mph

Orbea Urrun 30 20mph
  • Color: Glitter Anthracite (Gloss)/Black (Matt)
  • Color: Borealis Blue (Matt)/Luminous Yellow (Gloss)
  • Color: Leo Orange (Gloss)/Black (Matt)
$4,899.99 - $5,699.99
$5,699.99
Color: Glitter Anthracite (Gloss)/Black (Matt)
Size: Select size
Please select options Unavailable

Details

Urrun means "far" in the Basque language. Without a doubt, Urrun is an ebike to take you far and explore distant horizons, but the name holds more significance to us. Urrun is about the long journey we embarked upon with this bike and how far we have come. With new technologies and innovative integrations, it's safe to say we are proud to have Urrun in the family. Escape, enjoy bigger adventures, go further and explore harder. There are no more excuses.

Geometry Chart:
SmallMediumLargeX-Large
11 - SEAT TUBE (C-T) 400 453 483 533
22 - TOP TUBE (EFF) 565 579 608 645
33 - HEAD TUBE 110 115 132 153
44 - CHAINSTAY 445 445 445 445
55 - BB HEIGHT 322 320 320 320
66 - BB DROP 54 56 56 56
77 - WHEELBASE 1143 1150 1173 1220
88 - HEAD ANGLE 65,5º 66º 66º 66º
99 - SEAT ANGLE 74,8º 74,6º 74,6º 74,5º
1010 - STANDOVER 798 826 848 882
1111 - REACH 395 405 440 460
1212 - STACK 631 628 647 666
1313 - FORK LENGTH 533,5 533,5 533,5 533,5
14RAKE 44 44 44 44
Sizes:
Frame SizeRider height (in)
Small 61.1"-66.9"
Medium 65.0"-70.9"
Large 70.1"-74.8"
X-Large 72.8"-78.74"

Specs

Frame Orbea Urrun, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
Fork Marzocchi Bomber Z2 120 QR15x110 E-Bike Optimized
Wheels Alloy, Tubeless, 29", 29c, 32H
Tires Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
Crankset Shimano Steps EM600
Chainrings Alloy EP8 32t
Shifters Shimano Deore M4100
Rear Derailleur Shimano Deore M5120 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M4100 11-46t 10-Speed
Chain KMC e10 Turbo Silver
Brakes Magura MT30 Hydraulic Disc Easy Route Connection
Handlebars OC Mountain Control MC31, Rise20, Width 800
Stem Alloy forged, 35mm interface, -6º, ICR
Headset FSA 1-1/2" Integrated Aluminium Cup
Seatpost Alloy, 31.6mm, Setback 0
Saddle Selle Royal Vivo 145x269mm
Pedals VP-537 Black
Motor Shimano EP801-RS
Battery Orbea Internal 540Wh (Optional 250 Wh Range Extender)
Controller/Display EN600-L
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Glitter Anthracite (Gloss)/Black (Matt) / Small 8434446117749 M66516VJ 20228853770K
Glitter Anthracite (Gloss)/Black (Matt) / Medium 8434446117770 M66518VJ 20228132085K
Glitter Anthracite (Gloss)/Black (Matt) / Large
Glitter Anthracite (Gloss)/Black (Matt) / X-Large 8434446117831 8434446117831 2022940907K
Borealis Blue (Matt)/Luminous Yellow (Gloss) / Small
Borealis Blue (Matt)/Luminous Yellow (Gloss) / Medium
Borealis Blue (Matt)/Luminous Yellow (Gloss) / Large
Borealis Blue (Matt)/Luminous Yellow (Gloss) / X-Large
Leo Orange (Gloss)/Black (Matt) / Small
Leo Orange (Gloss)/Black (Matt) / Medium
Leo Orange (Gloss)/Black (Matt) / Large
Leo Orange (Gloss)/Black (Matt) / X-Large
